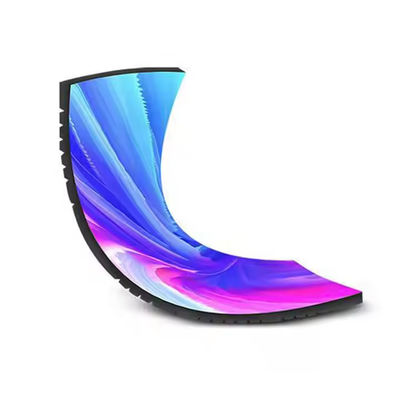

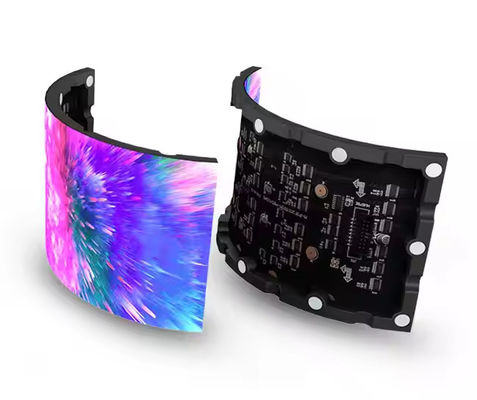

Name: P8 Outdoor Waterproof Mounted Wall Curve Flexible Video Advertising Led Display Screen
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: p8
Price: 10000.00 USD
Availability: InStock

ホーム製品導かれたスクリーンの広告

P8 Outdoor Waterproof Mounted Wall Curve Flexible Video Advertising Led Display Screen

商品の詳細:

起源の場所:	中国の深Shenzhen
ブランド名:	SCXK
証明:	CE/ROHS/FCC/ISO/UL
モデル番号:	p8

お支払配送条件:

最小注文数量:	3 sqm
価格:	交渉可能
パッケージの詳細:	フライトケース、木製のケース、カートン、それはあなた次第です。
受渡し時間:	支払いを受け取ってから7-10営業日
支払条件:	Western Union、MoneyGram、D/P、T/T、L/C
供給の能力:	月額5000sqm

連絡先

詳細製品概要

ピクセル:	8mm	チューブチップの色:	フルカラー
LEDタイプ:	SMD 3535	表示機能:	ビデオ/画像
防水:	IP65	キャビネット:	鉄
MBI:	51024	表示角度:	H：100 V：50
最適な視聴距離:	> = 4m	電圧:	DC5V
輝度:	5000cd/を超える	モジュール:	256*128mm
ハイライト:	outdoor waterproof LED display screen , mounted wall curve LED screen , flexible video advertising LED display

P8 Outdoor Waterproof Mounted Wall Curve Flexible Video Advertising LED Display Screen

Product Specifications

Specification	SCXp8
Pixel pitch (mm)	8
Pixel Configuration	1R1G1BSMD3528
Pixel Density(dot/)	15625
Module Resolution(W×H)	40*20
Module Size(mm)	320*160mm
Cabinet Resolution(W×H)	96*96
Cabinet Size(mm)	960*960mm
Unit brightness, chroma adjust	yes
Brightness	≥5500CD/
Gray scale	RGB12-16BitsEach
Color temperature (K)	6500~9500Adjustable
Horizontal / Vertical Viewing Angle (°)	110/55
Scanning mode	Dynamic
Frame Frequency (Hz)	≥60
Refresh Frequency (Hz)	200-2000
Max Power Consumption (W/m2)	≤850W/
Average Power Consumption (W/m2)	≤280W/
IP Rating	Front IP 65,Back IP 55
Life Span (hrs)	≥100,000
Power supply requirement	AC:220×(1±10%)V,50×(1±5%)Hz
Temperature Range (℃)	-20~50
Humidity Range (RH)	10%~90%, Nocondensation

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

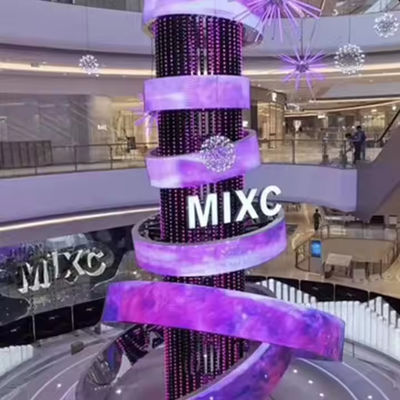

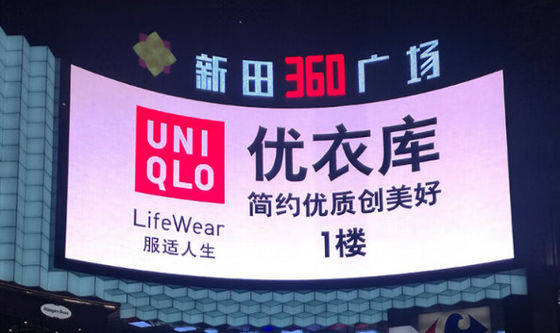

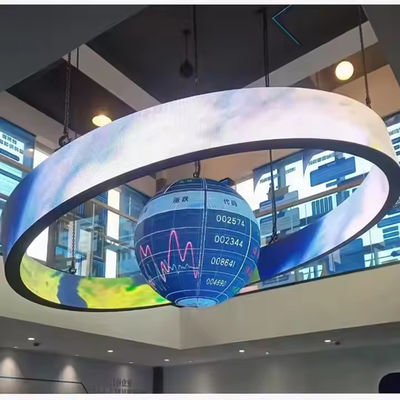

Applications

Outdoor and indoor advertising, digital billboards, advertising companies
Sports halls, fields, playgrounds, school church
Airports, bus stations and railway passenger terminals
Facades of shopping malls, department stores, banks and car dealerships
Architecture and social projects, information systems in cities
Show-business, concerts, festivals, motor shows and other public events

Product Features

Outdoor LED screen can work under the sun for high brightness and large viewing angle with a certain function of a windbreak, rainproof and waterproof.

Which is widely used as outdoor advertising and information media at station, square and shopping mall. Outdoor LED screen can be divided into a pillared screen, wall-mounted screen, and floor-standing screen, etc.

Workshop

Our Service

1. Warranty

We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training

We provide the technology training for free, which contains the operation training and maintenance.
Training in the factory.
We will send our engineers to your country by negotiation.

3. Maintenance and Consultation

We provide full maintenance for a lifetime and charge for the raw materials only.
We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

4. Documents and Certification

We provide the operation manual, software, test report and so on.
We can also provide all kinds of certification such as CE, LVD, RoHS and so on.

5. CAD Drawing and Fixing

We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
We will send our engineers to your place if we are expected after our negotiation.

6. Additional Service

We provide you the forwarding information, and some other information such as flight box, structure.
